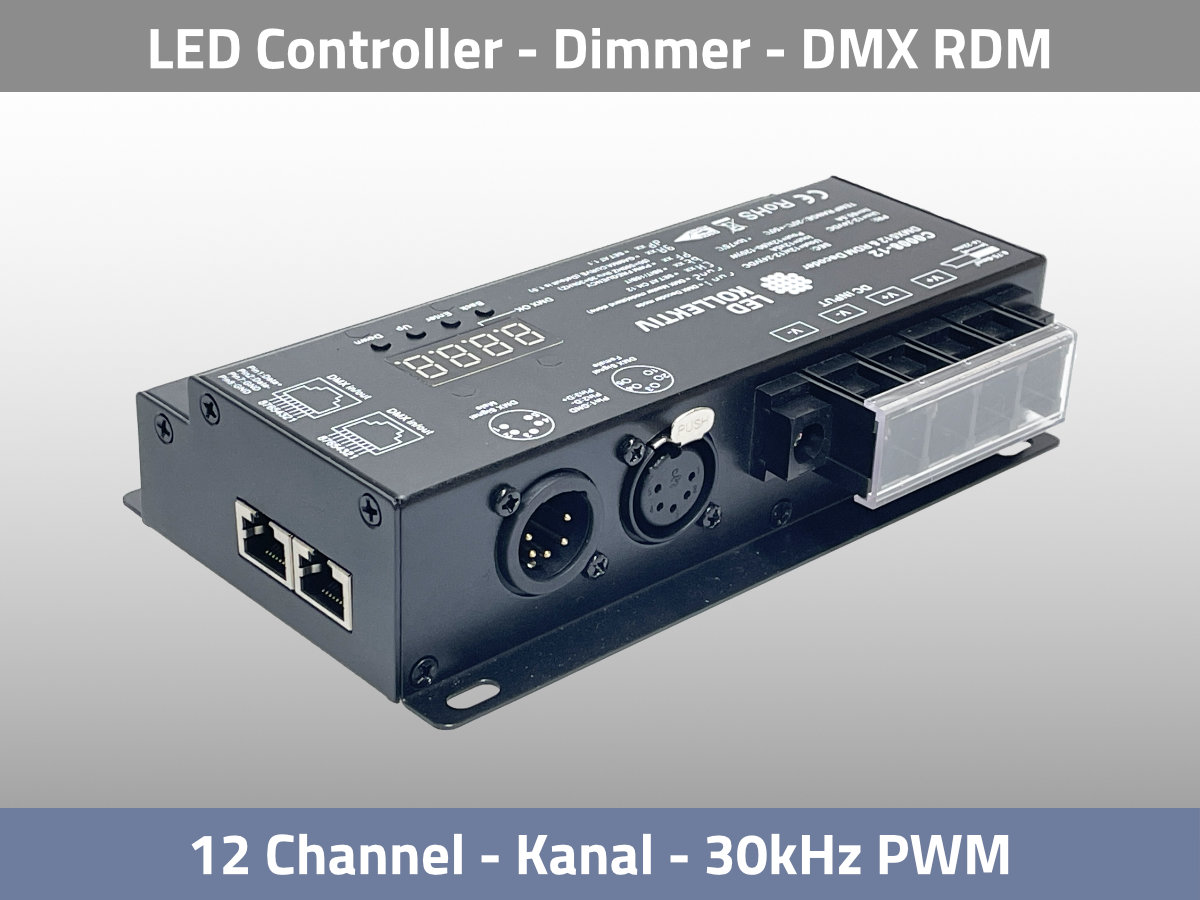

12 Channel DMX RDM LED Controller 12x 5A PWM XLR5 with Master Mode
Sold out
Our payment methods:
Product number:
CT0080-12
Product information "12 Channel DMX RDM LED Controller 12x 5A PWM XLR5 with Master Mode"
12 channel DMX RDM LED controller, 12x 5A LED PWM OUT XLR5. Special extra Master Mode for controlling channels manually without DMX. A voltage range of 12-24VDC makes it very easy to fit in most LED installations.
A PWM frequency of maximum 30kHz support flicker free usage for film and movie projects. The high dim steps resolution of up to 16bit (65535 Steps) provides a smooth transistion, without seeing the actual dim step.
The RDM functionality gives you remote control directly in your hands. Setup DMX adress right from your lighting desk.
We have used this LED controller on many many film projects in different situations.
A PWM frequency of maximum 30kHz support flicker free usage for film and movie projects. The high dim steps resolution of up to 16bit (65535 Steps) provides a smooth transistion, without seeing the actual dim step.
The RDM functionality gives you remote control directly in your hands. Setup DMX adress right from your lighting desk.
We have used this LED controller on many many film projects in different situations.
Properties
| PWM Frequency: | max. 30kHz |
|---|---|
| Resolution: | 8 / 16 Bit |
| Voltage: | 12 - 24 VDC |
| Power: | 720W (12 VDC) 1440W (24 VDC) |
| Current: | 60,5A (12x 5A) |
| Length: | 165,5 mm |
| Width: | 99,7 mm |
| Height: | 38 mm |
Manufacturer "Graf Lichttechnik"
Graf Lichttechnik UG
Goerzallee 299, 14167 Berlin, Germany
info@graf-lichttechnik.de
Goerzallee 299, 14167 Berlin, Germany
info@graf-lichttechnik.de
Related links of the manufacturer
Login
Perfect Flicker Free Dimming
Our LED controllers are used in many film and movie productions.
This is what we like about:
- DMX support
- RDM support
- High PWM Frequency for flicker free dimming
- High Bit rates for smooth dimming
- Master mode for Stand Alone control
- Reliably and low cost
