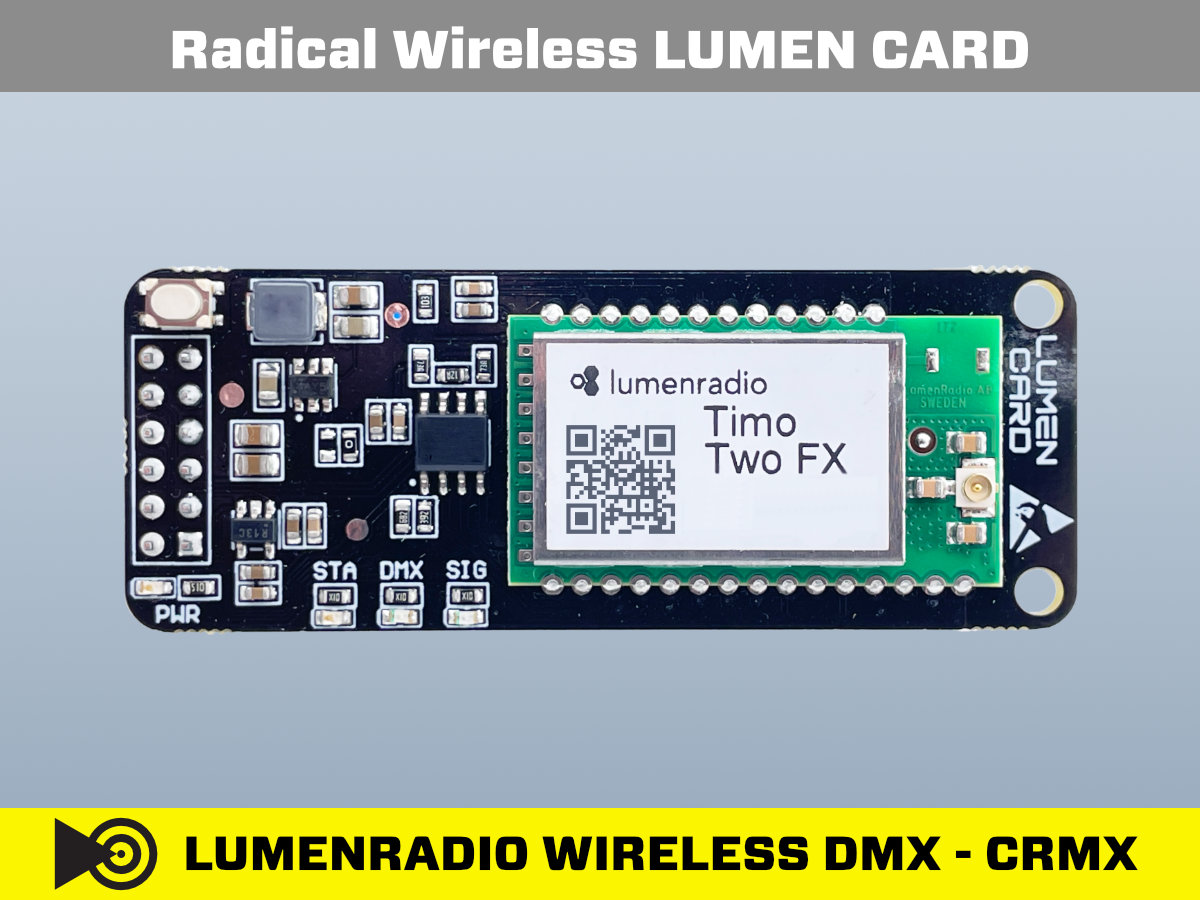

Radical Wireless LUMEN CARD TiMoTwo CRMX Module
Our payment methods:
Product number:
W6001
Available stock:
23
Manufacturer no.:
W6001
Product information "Radical Wireless LUMEN CARD TiMoTwo CRMX Module"
This module is designed as a plug-and-play CRMX module. It is easy to integrate without any additional programming needed.

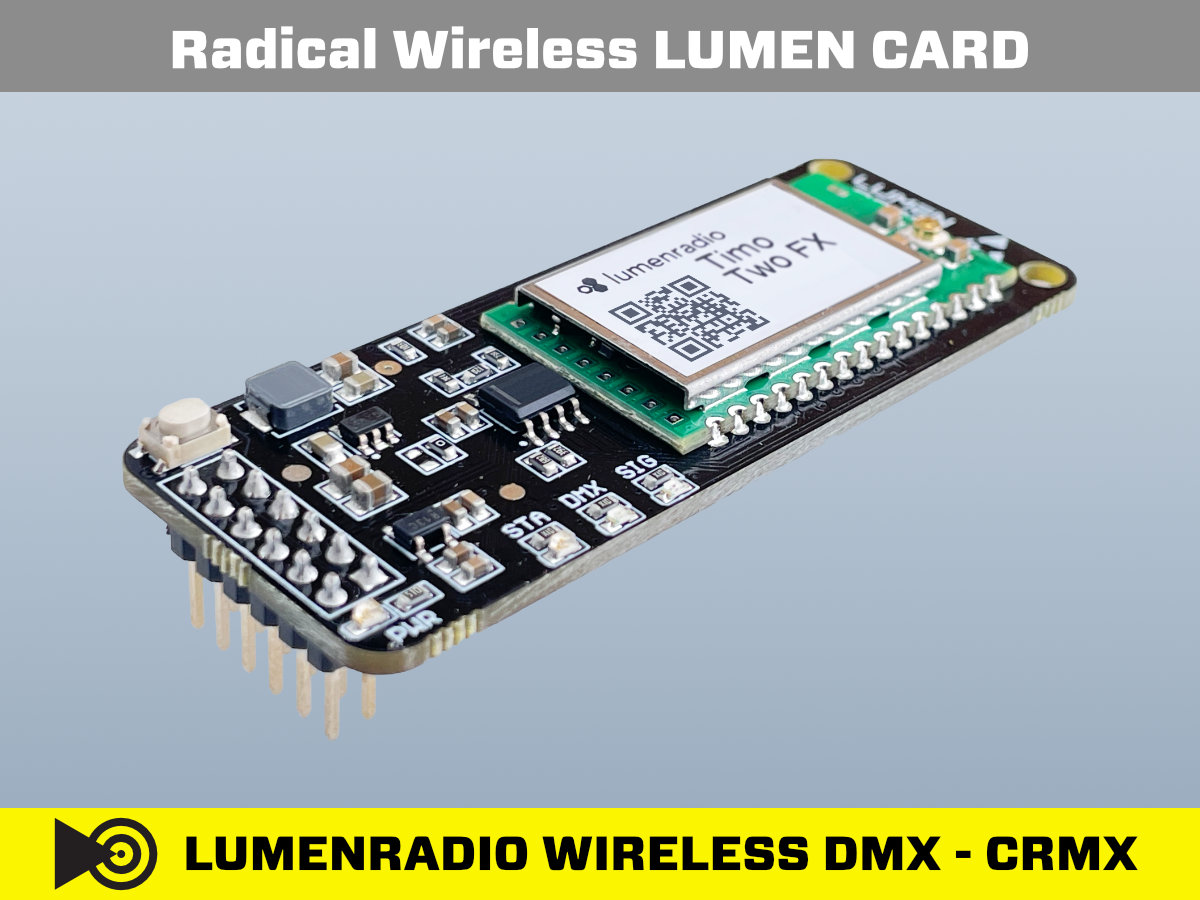

The standard 2.54mm Header gives the user the most flexible integration for professional and DIY projects. The header pins offer direct access to DMX, Signal Level LEDs and the mandatory switch button. All basic feedback LEDs like STATUS, LINK and LOW SIGNAL, as well as the LINK switch button are accessible directly on the top side of the module.

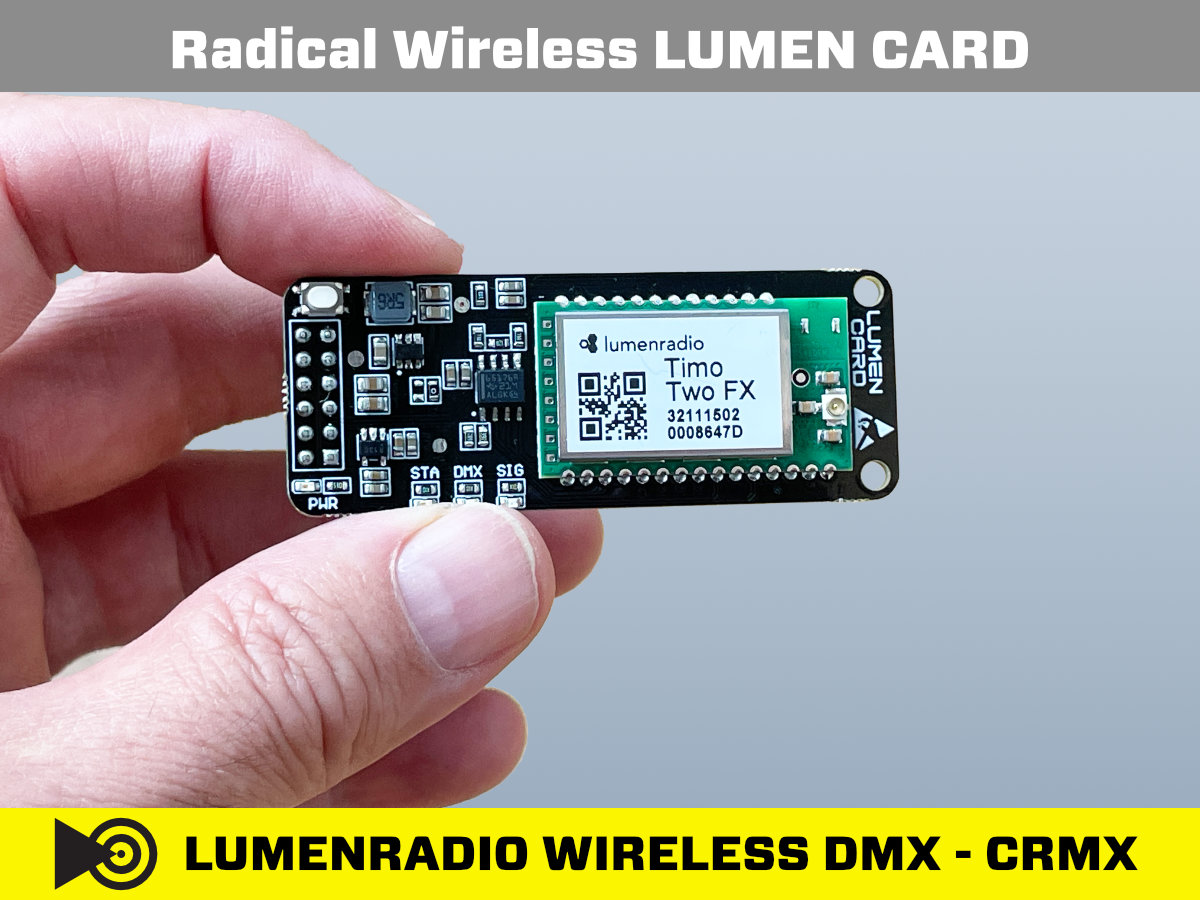

Despite its powerful functionality, the module is extremely compact and can be easily installed in own luminaires or DMX end devices.
The Radical Wireless LUMEN CARD TiMoTwo module with Lumenradio's best CRMX and WDMX technology, allows easy wireless control of DMX luminaires and LED dimmers.
Current Hardware Revision: v1.0.1
Changes: Added solder jumper to enable/disable UI LEDs
The standard 2.54mm Header gives the user the most flexible integration for professional and DIY projects. The header pins offer direct access to DMX, Signal Level LEDs and the mandatory switch button. All basic feedback LEDs like STATUS, LINK and LOW SIGNAL, as well as the LINK switch button are accessible directly on the top side of the module.
Despite its powerful functionality, the module is extremely compact and can be easily installed in own luminaires or DMX end devices.
The Radical Wireless LUMEN CARD TiMoTwo module with Lumenradio's best CRMX and WDMX technology, allows easy wireless control of DMX luminaires and LED dimmers.
Current Hardware Revision: v1.0.1
Changes: Added solder jumper to enable/disable UI LEDs
Properties
| DMX Interface: | DMX, RDM |
|---|---|
| Frequency Band: | 2402 MHz - 2480 MHz |
| Input Voltage Nominal: | 5.00 VDC |
| Operating Temperature Range: | -20°C - +60°C |
| Programming Interface: | ohne |
| Transmitting Power: | 5 - 20 dBm |
| Voltage input range: | 5 - 36 VDC |
| Current: | max. 300 mA |

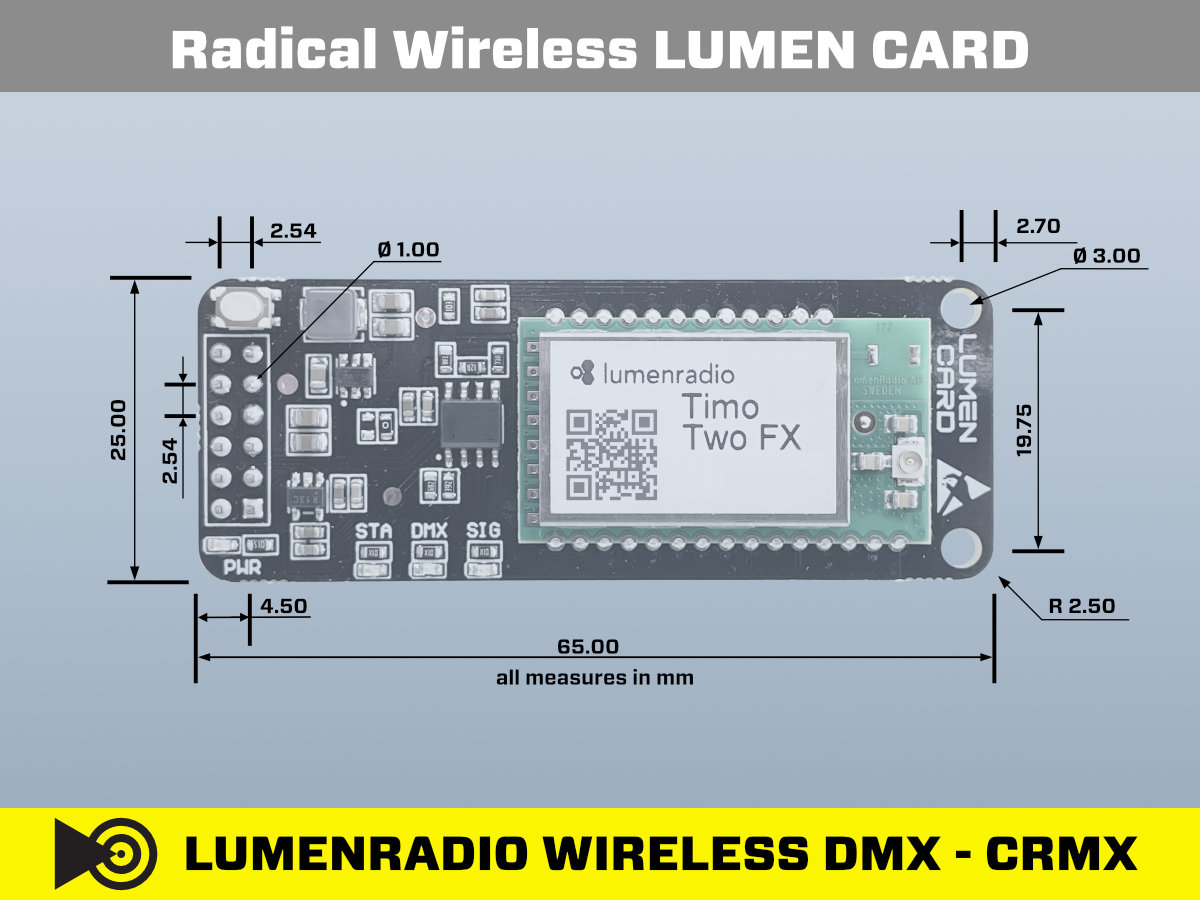

| Pitch: | 2.54 mm |
| Length: | 65.00 mm |
| Width: | 25.00 mm |
| Height: | 5.20 mm |
Datasheets
Manufacturer "Radical Wireless"
Graf Lichttechnik UG
Goerzallee 299
14167 Berlin
info@graf-lichttechnik.de / www.graf-lichttechnik.de
info@radicalwireless.com / www.radicalwireless.com
Related links of the manufacturer
Login
Skip product gallery
Ähnlich
Radical Wireless LUMEN CONTROL TiMoTwo CRMX Module
€116.81*
The Radical Wireless LUMEN CONTROL TiMoTwo module with Lumenradio's best CRMX and WDMX technology, allows easy wireless control of DMX luminaires and LED dimmers.Despite its powerful functionality, the module is extremely compact and can be easily installed in own luminaires or DMX end devices.With its simple SPI programming and control, the module is also well suited for use in more complex control systems.This version is SPI control only. You need an external microcontroller or development board like Arduino or STM32 Bluepill to control this module.
Product number:
W6000
Skip product gallery
Accessories

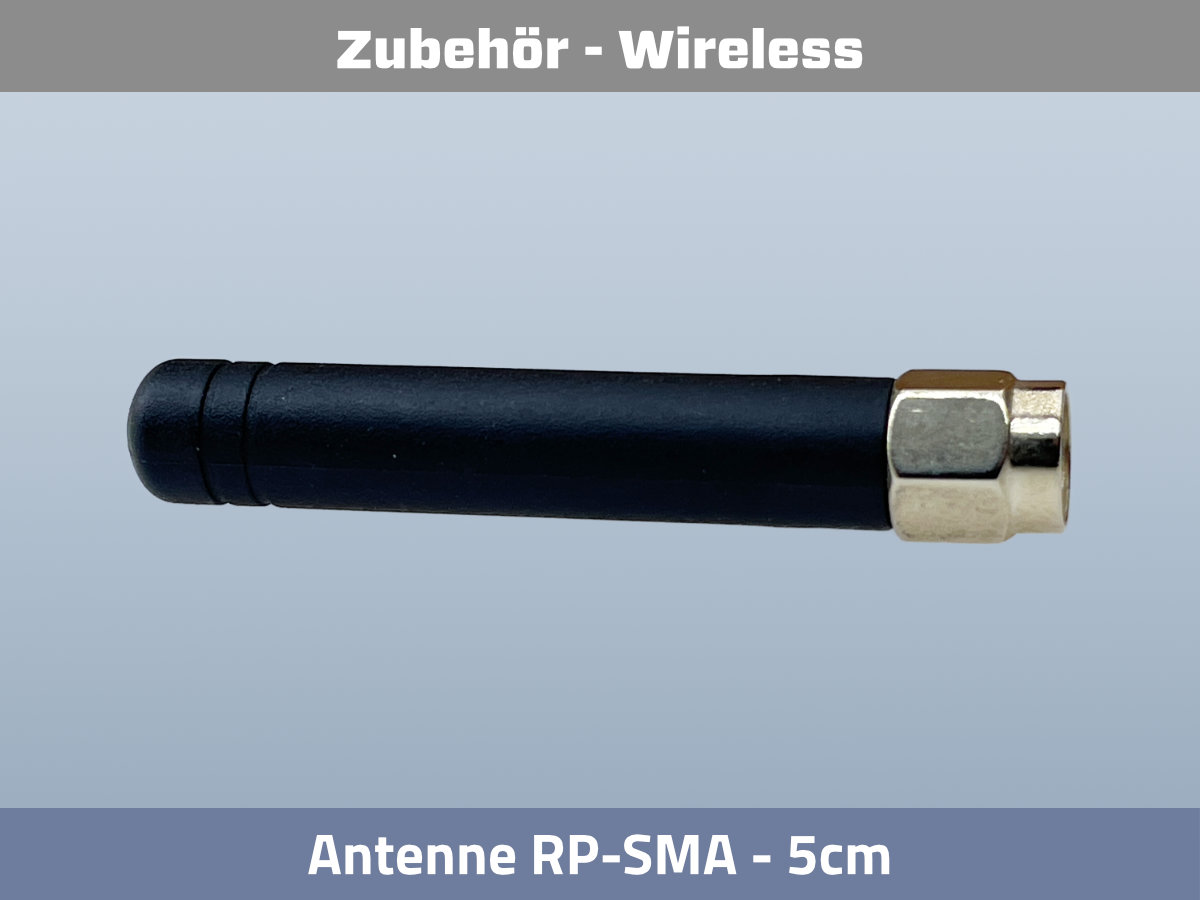

RP-SMA Rod Antenna 5cm 2.0dBi Gain
€7.13*
RP-SMA rod antenna with 2.0dBi gainImprove your wireless connection with this short RP-SMA antenna. With a gain of 2.0dBi, it is ideal for applications in the 2.4GHz frequency band, such as WLAN applications and Wireless DMX.Specially optimized for our products, it offers outstanding quality thanks to the use of high-quality components.
Product number:
K40809-2.0

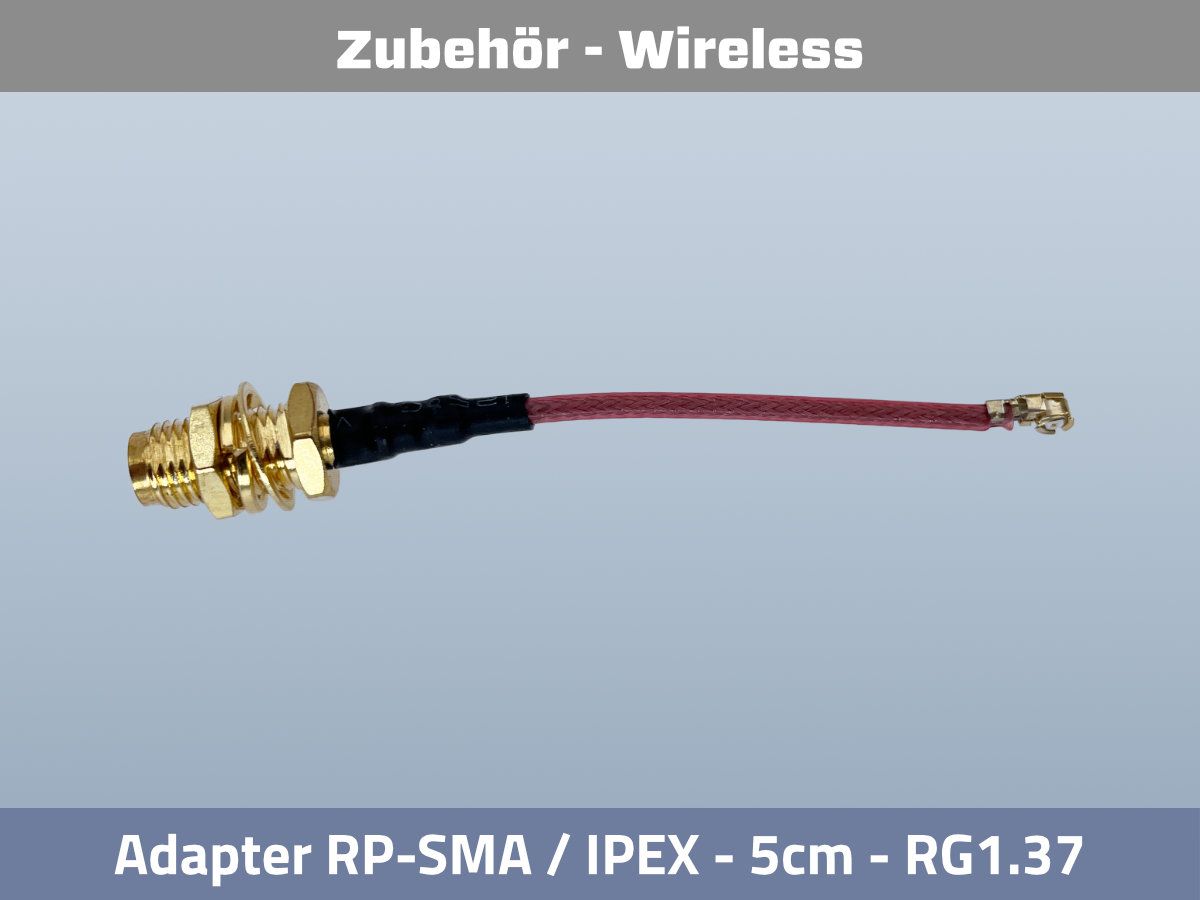

RP-SMA to IPEX Adapter 5cm RG 1.37
