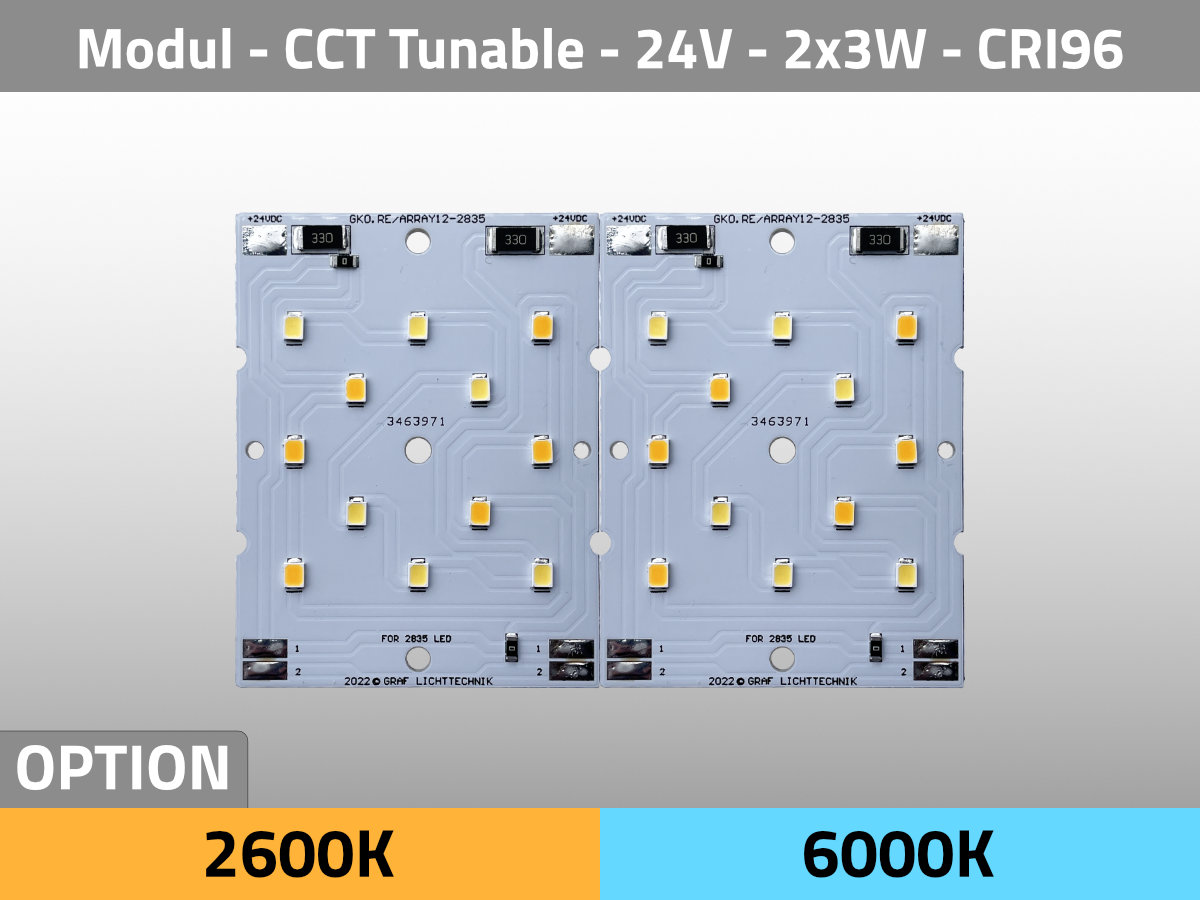

LED Module ARRAY12 CCT 2600K & 6000K 24V 6W CRI96 TLCI96
Our payment methods:
Product number:
A60008
Available stock:
20
Product information "LED Module ARRAY12 CCT 2600K & 6000K 24V 6W CRI96 TLCI96"
GKORE LED Module, 2 channel, 24VDC, CCT Configuration. Power Dissipation of 6W (2x 3W). ARRAY12 can be easily daisy-chain with more ARRAY12 modules, due it's the special design.

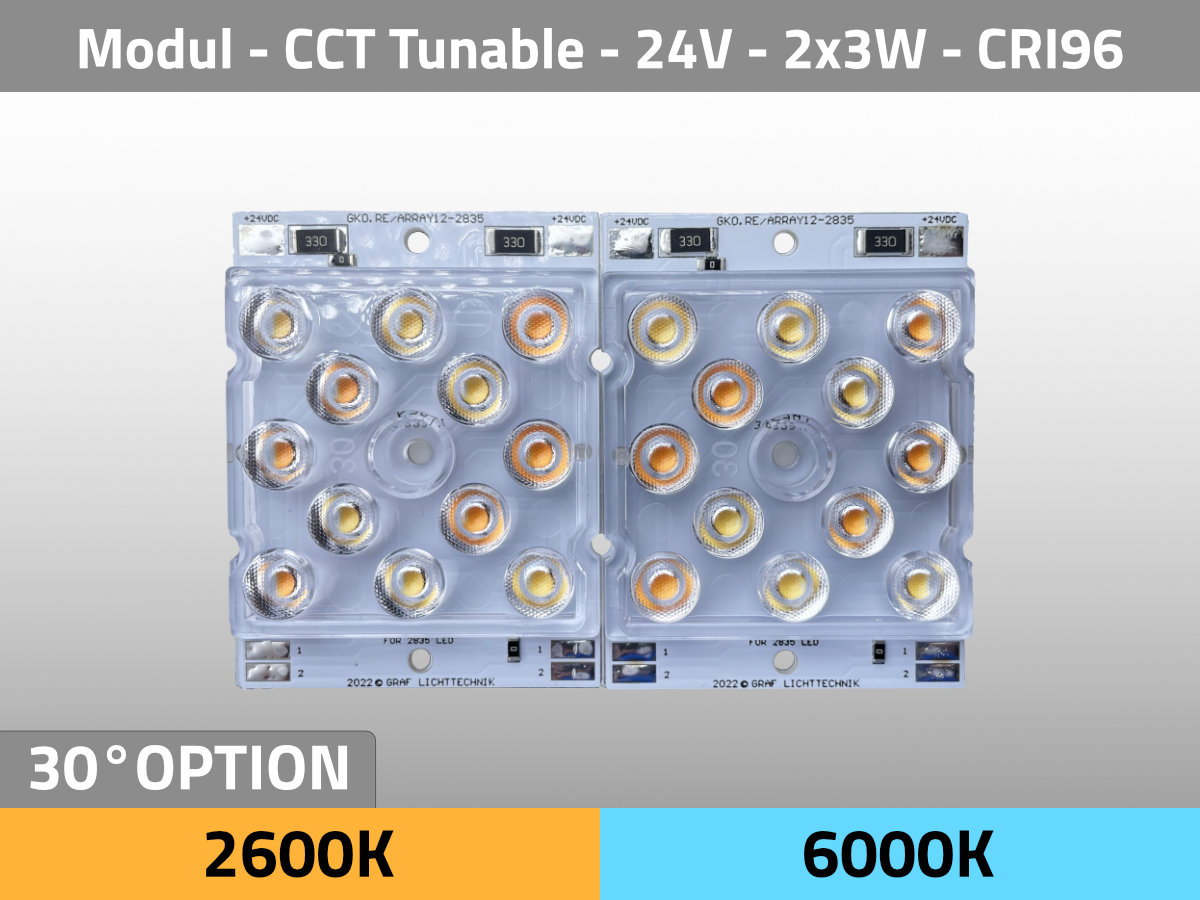

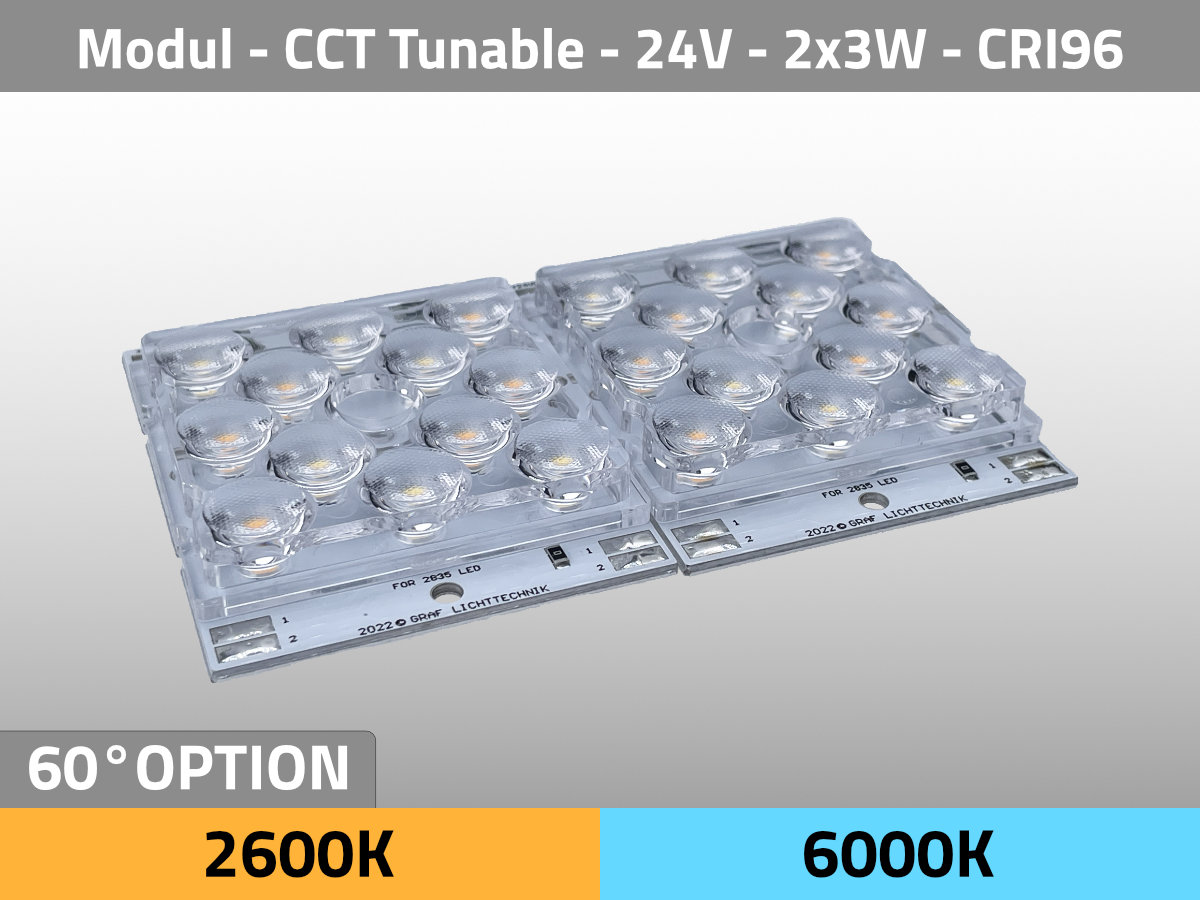

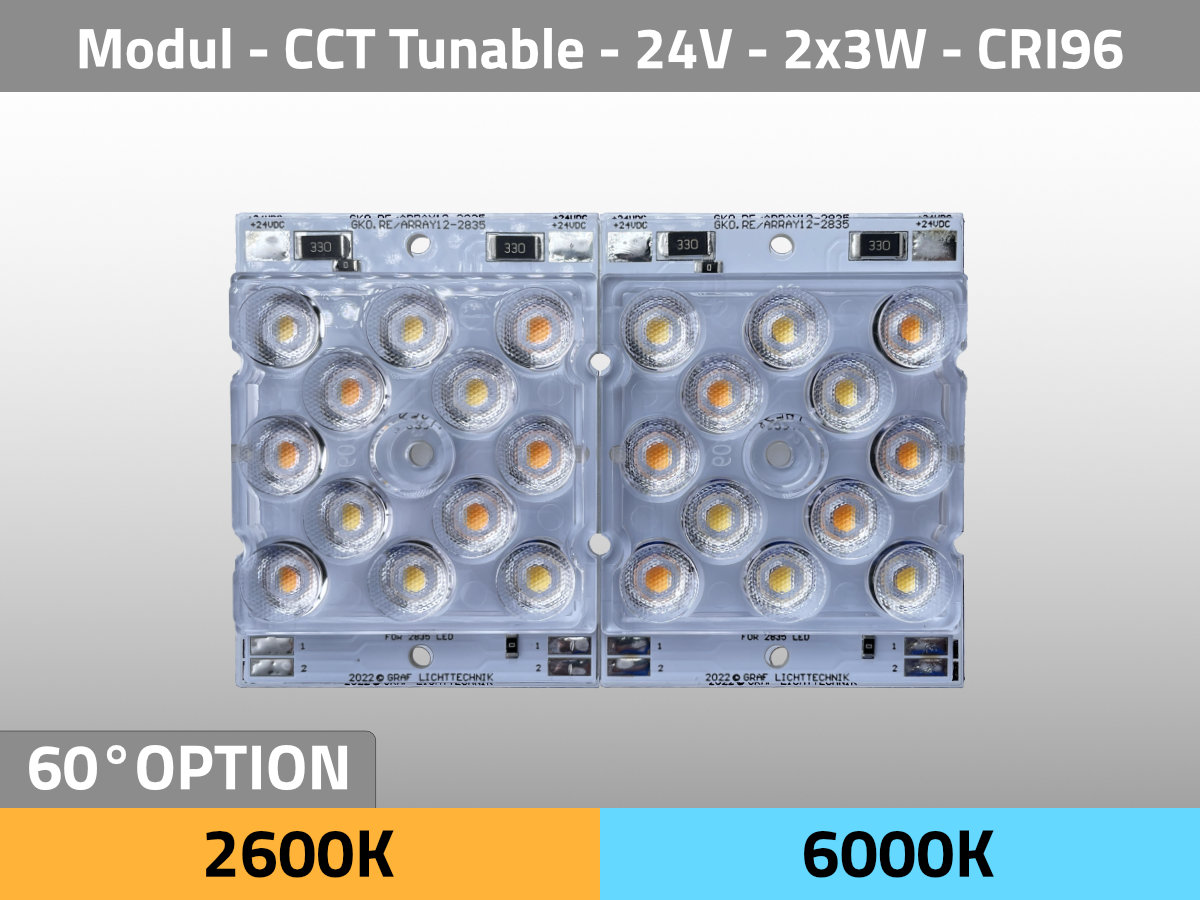

We designed it to be combined with our 30° or 60° beam angle lens arrays.
Designed and manufactured in-house, this LED module contains 2 channels each consits 6 LEDs.
About our own in-house manufacturing service:
The great thing getting a module from us is that you get to select which colors you want the LEDs to be and we will fabricate it according to your wishes.
This variant has a high output of 15W and a voltage of 24VDC.
Properties
| Abstrahlwinkel: | 120° |
|---|---|
| GKORE SERIES: | GKORE CINE Series |
| Color: | CCT |
| Color Temperature: | 2600 K | 6000 K |
| CRI: | 96 |
| Voltage: | 24 VDC |
| Power: | 6 W |
| Current: | 0,25 A |
| Number of LEDs: | 12 (2x6 LEDs) |
| Number of channels: | 2 |
| LED Type: | 2835 |
| Length: | 50 mm |
| Width: | 65.50 mm |
| Height: | 2.3 mm |
| IP Rating: | IP 20 |
Manufacturer "Graf Lichttechnik"
Graf Lichttechnik UG
Goerzallee 299, 14167 Berlin, Germany
info@graf-lichttechnik.de
Goerzallee 299, 14167 Berlin, Germany
info@graf-lichttechnik.de
