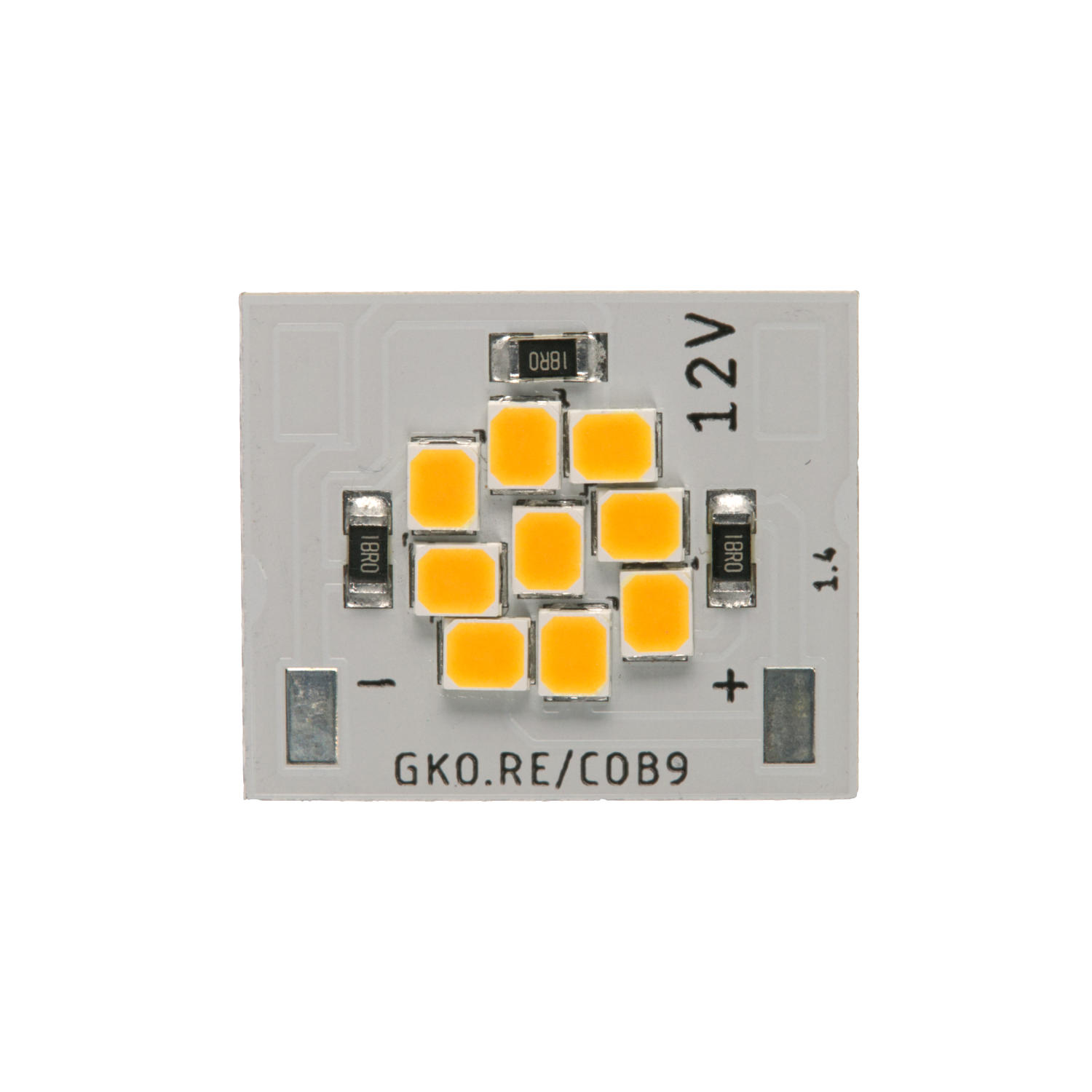

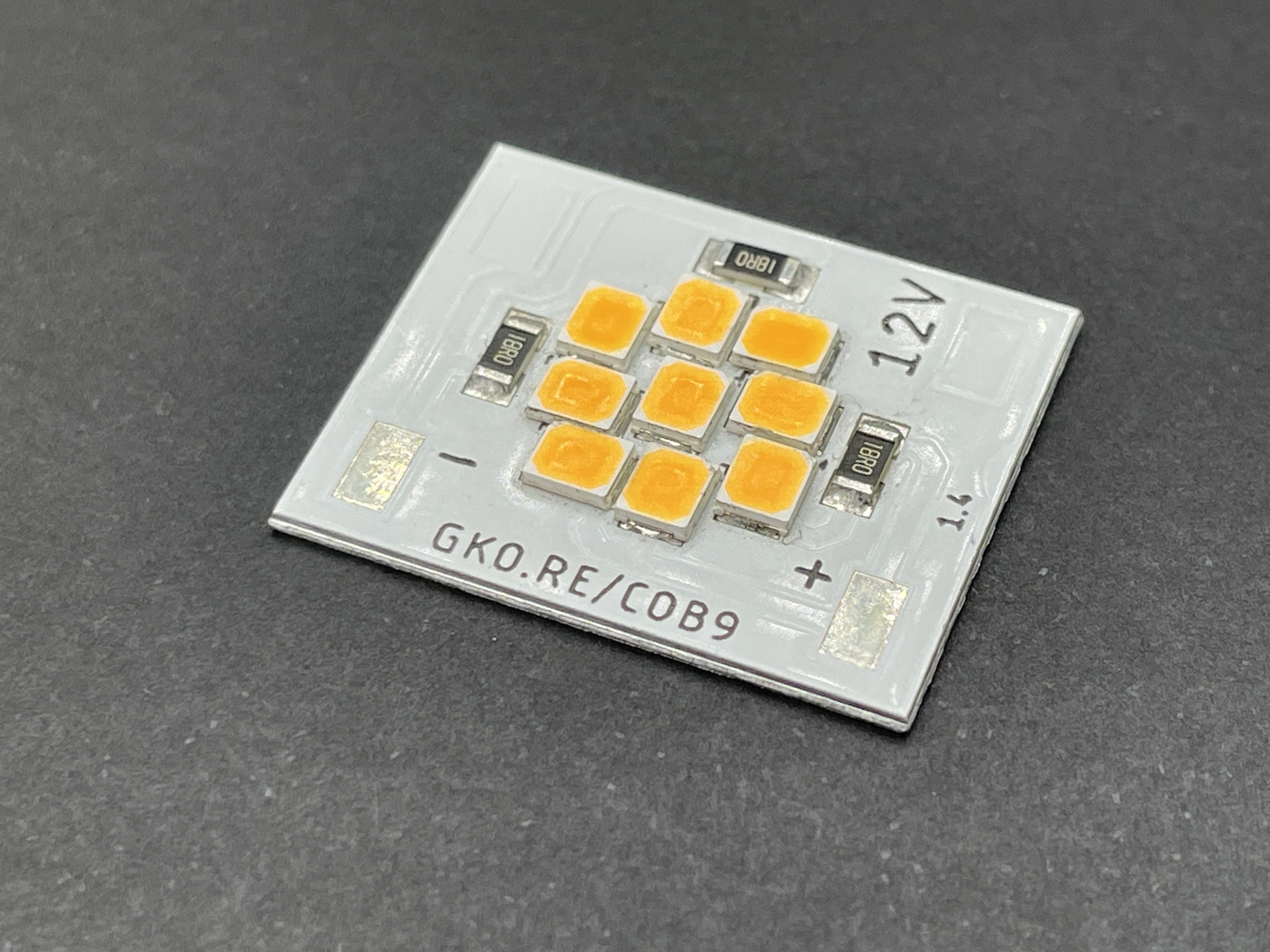

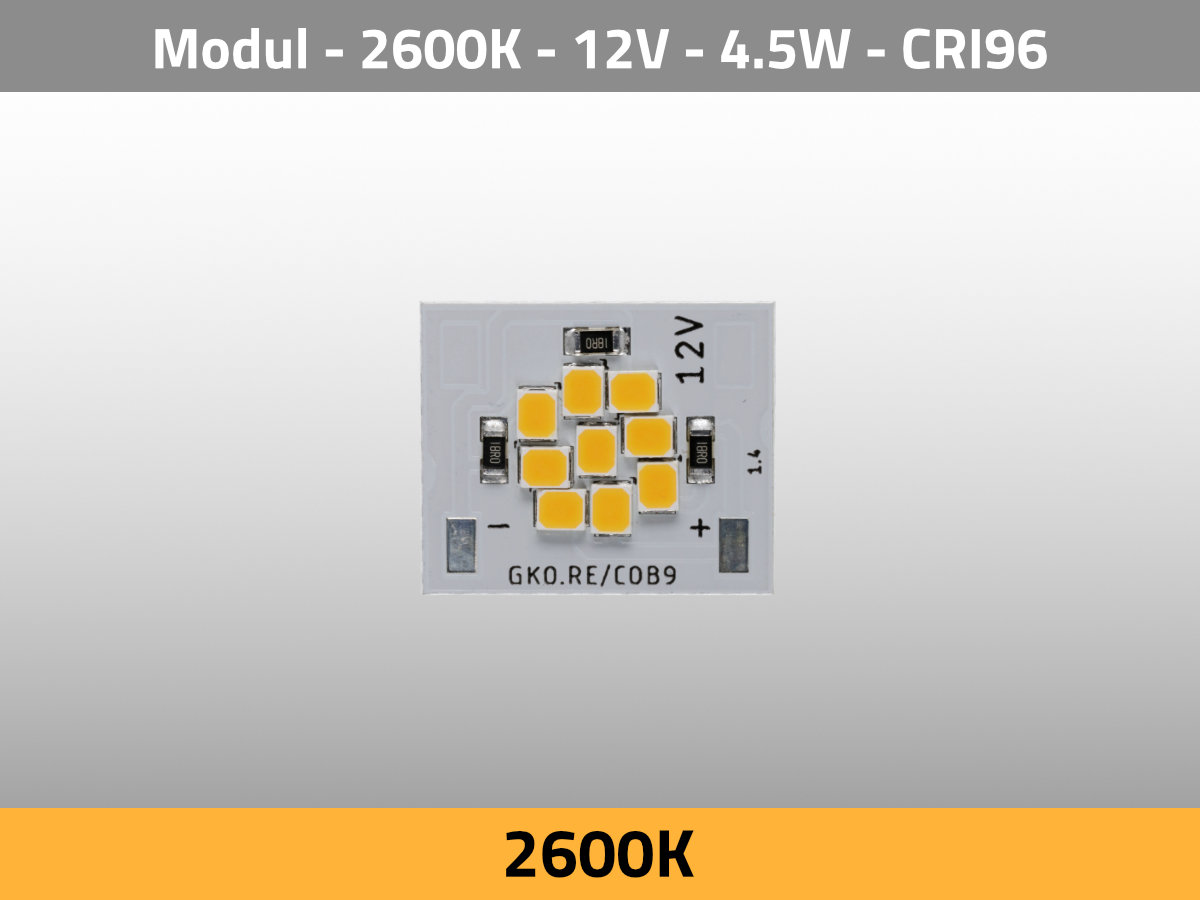

LED Module COB9 12V 4.5W 2600K CRI96 TLCI95

Graf Lichttechnik

€4.90*

Prices excl. VAT plus shipping costs

Available, delivery time: 2-5 days

Our payment methods:

Product number: A60003-26

Available stock: 30

Product information "LED Module COB9 12V 4.5W 2600K CRI96 TLCI95"

The COB9 LED module is designed for use with LED optics from LEDiL. Due it's standard size you can use it with nalso a wide range of LED optics and LED holders and offers very high color quality.
Beside the available color temperatures of 1600K, 2600K und 6000K, we can design an individual arrangement of LED due our inhouse manufacturing. Just get in contact with us.

Properties

GKORE SERIES:	GKORE CINE Series
Color:	warm white
Color Temperature:	2600 K
CRI:	96
Voltage:	12 VDC
Power:	5 W
Beam Angle:	120°
Number of LEDs:	9
Number of channels:	1
LED Type:	2835
LES:	13 mm

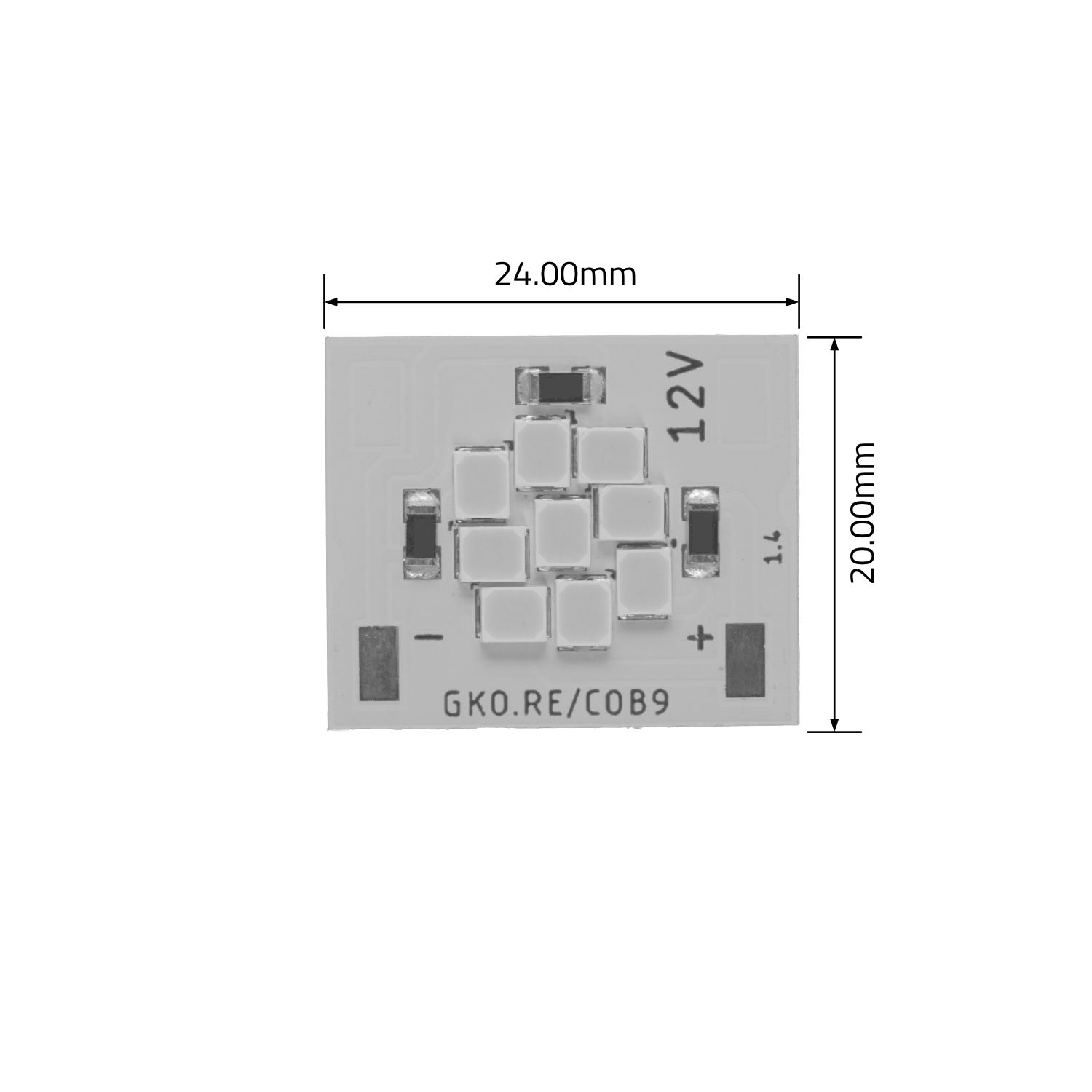

Length:	24.00 mm
Width:	20.00 mm
Height:	2.00 mm
IP Rating:	IP 20

Manufacturer "Graf Lichttechnik"

Login

Your email address

Your password

No reviews found. Share your insights with others.

Accessories

LEDiL lens holder HEKLA-SOCKET-K C16142

Holder for LEDiL optics and lenses for LEDs up to a LES of 18mm. The bajonett style holder system allows a quick change of optics and lenses.LEDiL is one of the biggest market leader for optical systems for LED lighting solutions.

Product number: AC0014

€1.09*

Bender & Wirth LED Holder 442 Typ L8 COB

High quality COB LED holder compatible with LEDiL Hekla-K and Tunable LED modules of standard size of 24.00 x 20.00mm. The holder has 4 leads

Product number: AC0015

€8.32*

LEDiL CP17401 YASMEEN 50 MC Lens for LED

This LEDiL lense features a 26° wide medium spot beam. Assembly with holder C compatible with HEKLA sockets and connectors. Black version.

Product number: AC0017

€7.90*

LED Controller 30kHz flicker free dimming DMX RDM 5 Channel

5 Channel DMX RDM LED Controller 5x 8A OUT XLR5 with Master Mode

5 channel DMX RDM LED controller, 5x 8A LED PWM OUT XLR5. Special Master Mode for controlling channels manually without DMX. A voltage range of 12-24VDC makes it very easy to fit in most LED situation.A PWM frequency of maximum 30kHz support flicker free usage for film and movie projects. The high dim steps resolution of up to 16bit (65535 Steps) provides a smooth transistion, without seeing the actual dim step.The RDM functionality gives you remote control directly in your hands. Setup DMX adress right from your lighting desk.We have used this LED controller on many many film projects in different situations.The data sheet: Download PDF

Product number: CT0080-5

€69.00*

Details

Similar Products

LED Modul BAR5 CCT 2600K & 6000K & RGB 24V 15W HighOutput CRI96 TLCI96

GKORE LED Module, 5 channels, 24VDC, CCT & RGB Configuration. Power Dissipation of full 15W (5x 3W). BAR5 means 5cm in length. Due the special design, this module is daisy-chainable.Original GKORE product - Five single color LED module 24V.Designed and manufactured in-house, this LED module contains 5 channels each consits 6 LEDs.About our own in-house manufacturing service:The great thing getting a module from us is that you get to select which colors you want the LEDs to be and we will fabricate it according to your wishes.This variant has a high output of 15W and a voltage of 24VDC.

Product number: A60007-CCTRGB

€25.10*

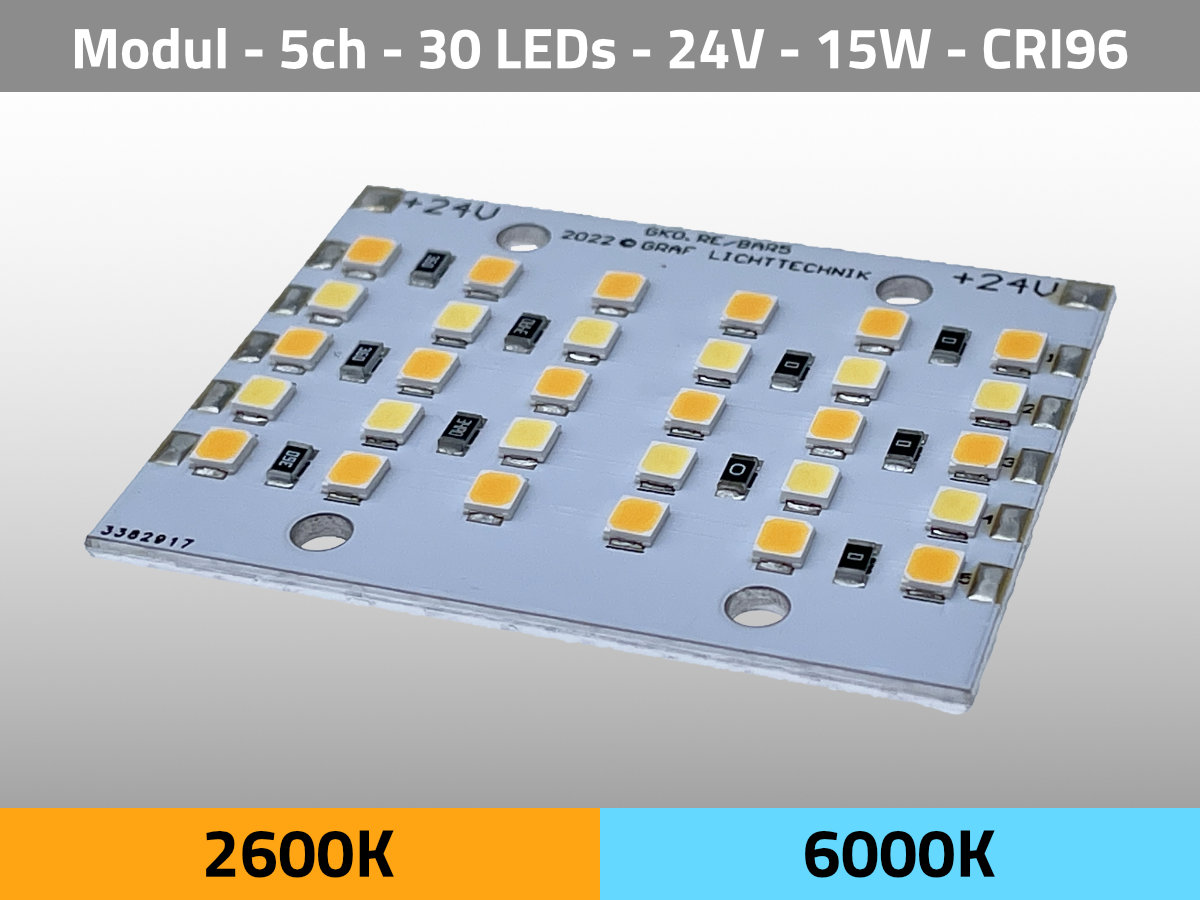

LED Modul Bi-Color CCT Hybrid 2600K 6000K Kunstlicht Tageslicht CRI96

LED Modul BAR5 CCT Configuration 24V 15W HighOutput CRI96

GKORE LED Module, 5 channels, 24VDC, CCT Configuration. Power Dissipation of full 15W (5x 3W). BAR5 means 5cm in length. Due the special design, this module is daisy-chainable.Original GKORE product - Five color LED module 24V.Designed and manufactured in-house, this LED module contains 5 channels each consits 6 LEDs.About our own in-house manufacturing service:The great thing getting a module from us is that you get to select which colors you want the LEDs to be and we will fabricate it according to your wishes.This variant has a high output of 15W and a voltage of 24VDC.

Product number: A60007-CCT

€25.10*

LED Modul BAR5 Custom Configuration 24V 15W HighOutput CRI96

GKORE LED Module, 5 channels, 24VDC, Custom Configuration. Power Dissipation of full 15W (5x 3W). BAR5 means 5cm in length. Due the special design, this module is daisy-chainable.Original GKORE product - Five color LED module 24V.Designed and manufactured in-house, this LED module contains 5 channels each consits 6 LEDs.About our own in-house manufacturing service:The great thing getting a module from us is that you get to select which colors you want the LEDs to be and we will fabricate it according to your wishes.This variant has a high output of 15W and a voltage of 24VDC.

Product number: A60007-IND

€25.10*

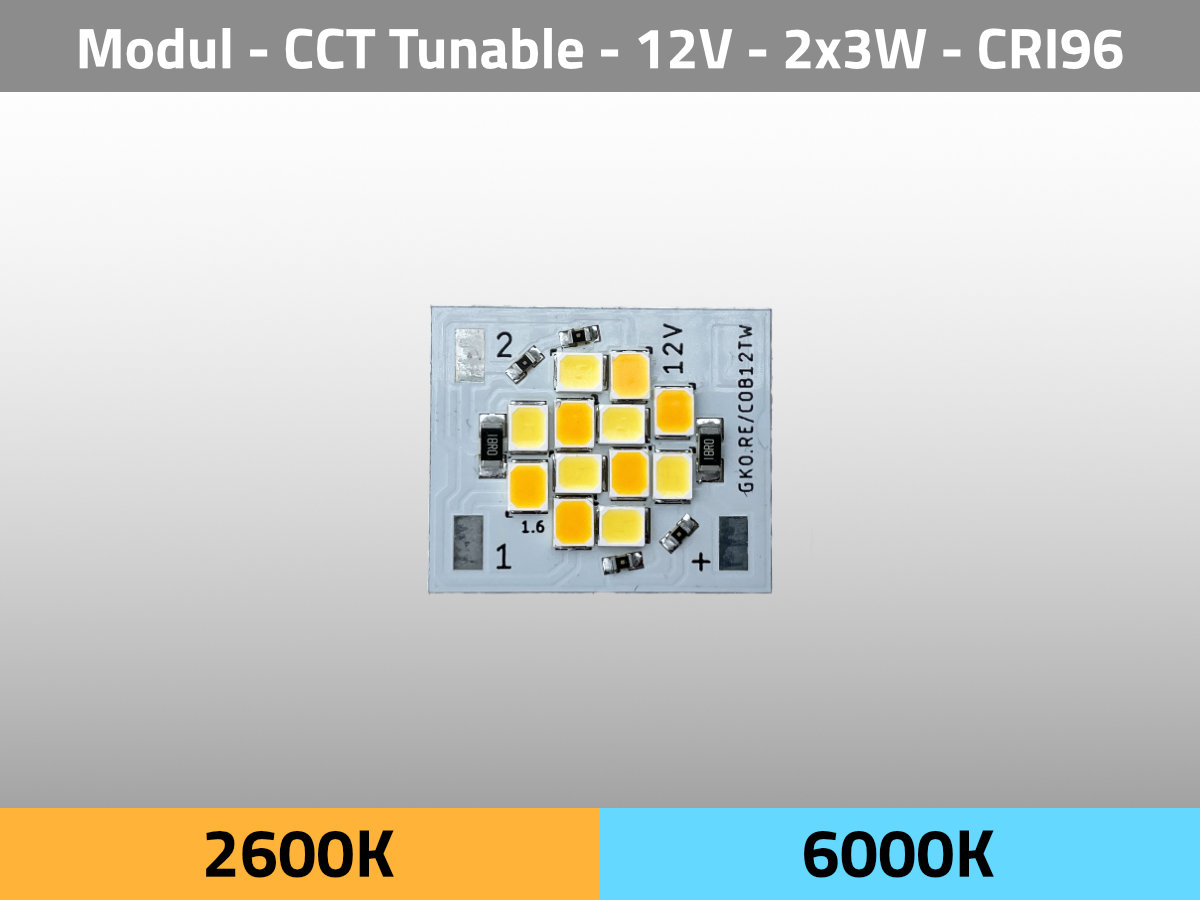

LED Modul COB12 12V 2x3W 1600K 6000K CCT Tunable CRI96 TLCI95

Amber - warm and cosy color. The Bi-Color 2ch COB12 LED module is designed for use with LED optics from LEDiL. Due it's standard size of 24x20mm you can use it with a wide range of LED optics and LED holders and offers very high color quality.Beside the available color temperatures of 1600K, 2600K und 6000K, we can design an individual arrangement of LED due our inhouse manufacturing. Just get in contact with us.

Product number: A60006-1660

€7.50*
