LED Neon Flex Side RGB 12V 14W/m 112LEDs/m 6x12mm
Topseller
Our payment methods:
Product number:
A50011-RGB
Available stock:
61
Product information "LED Neon Flex Side RGB 12V 14W/m 112LEDs/m 6x12mm"

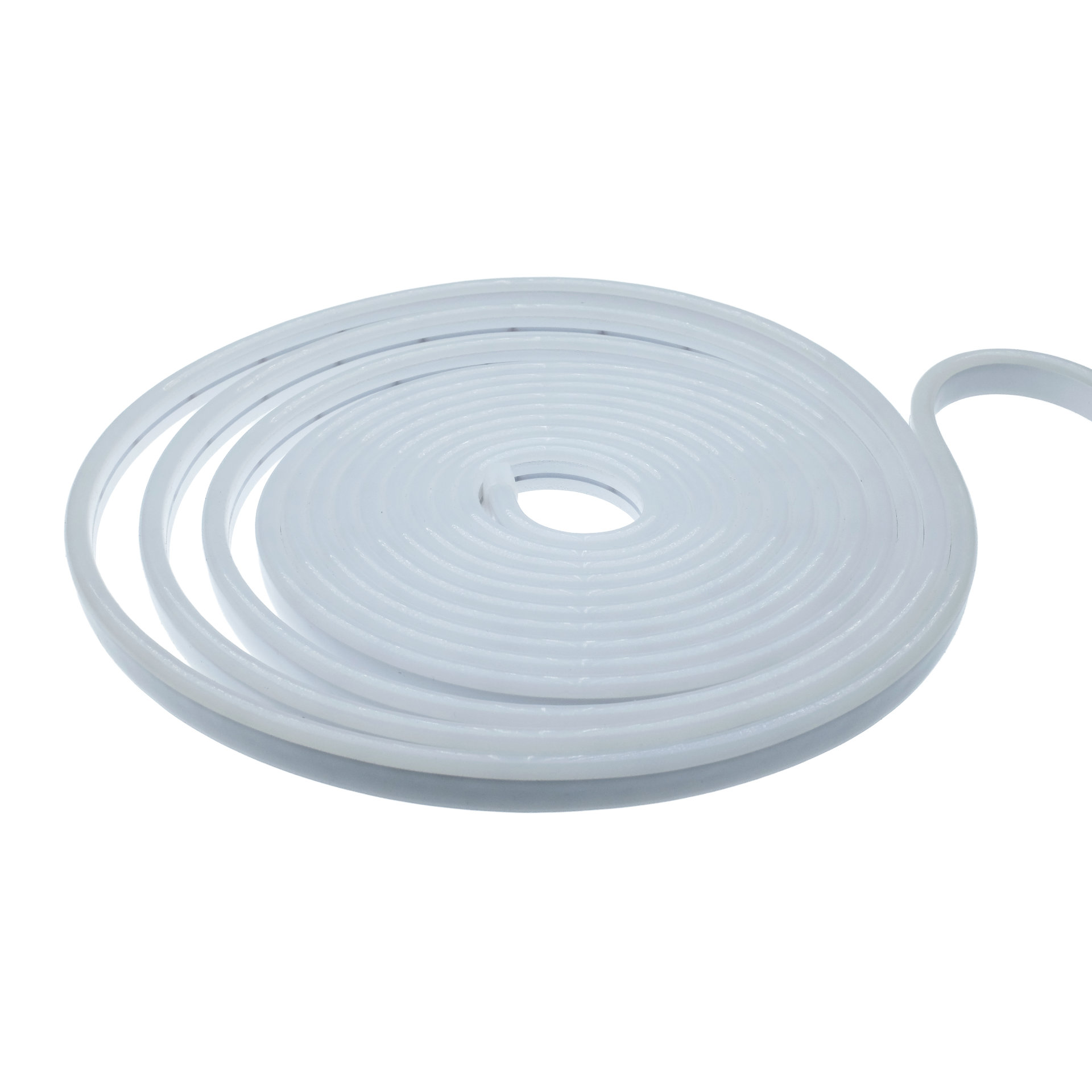

Small and light intenive LED Neon Flex Strip emits vibrant RGB colors. Homogen and evenly colored. Very small bending radius, perfect for letters, outline and luminous signs.
5m roll, 14W/m, IP65 rating, 12VDC and 112LEDs/m.

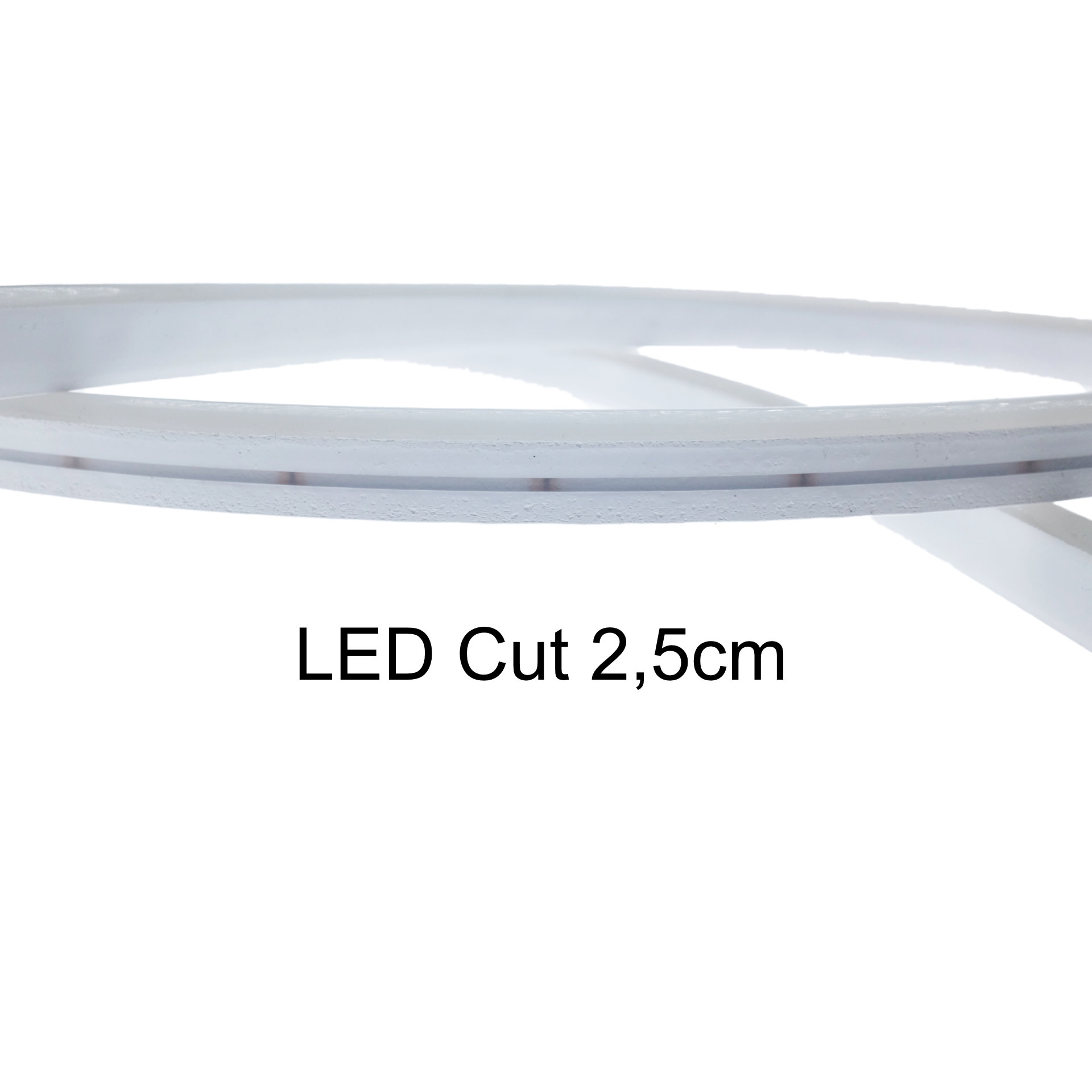

Cutable every 2.5cm. Size 6x12mm. Horizontal Bending.
I am glad that you ask why this stripe got only 112LEDs/m. After many test it turned out, that NEON FLEX RGB LED strips with 120LEDs/m may break in certain situations and do not last for long time. That's why we decided to use a much more rigid solution, with sligtly less LED, but keeping the same homogenous output.
5m roll, 14W/m, IP65 rating, 12VDC and 112LEDs/m.
Cutable every 2.5cm. Size 6x12mm. Horizontal Bending.
I am glad that you ask why this stripe got only 112LEDs/m. After many test it turned out, that NEON FLEX RGB LED strips with 120LEDs/m may break in certain situations and do not last for long time. That's why we decided to use a much more rigid solution, with sligtly less LED, but keeping the same homogenous output.
Properties
| Abstrahlwinkel: | 160° |
|---|---|
| Bending Direction: | horizontally |
| Energieeffizienzklassse: | G |
| Color: | RGB |
| x/y Coordinates: | 0,6941/0,3057 (Rot) | 0,1363/0,7207 (Grün) | 0,1402/0,0519 (Blau) |
| Voltage: | 12 VDC |
| Power: | 14 W/m |
| Current: | 0,9 |
| Brightness: | 349 lm/m |
| Efficiency: | 14 lm/W/m |
| Quantity of LED: | 112 LEDs/m |
| LED Cut Length: | 2.5 cm |
| Length: | 5 m |
| Width: | 6 mm |
| Height: | 12 mm |
| IP Rating: | IP 65 |
Manufacturer "Generelle Marke"
Related links of the manufacturer
Login
Neon Flex LED strips - the very special light installation
Ideas for use
Due to the small bending radius, these Neon Flex are perfect for:
- Formung und/oder Umrandung von Buchstaben und Wörtern.
- Shaping of luminous signs or lettering.
Illumination description & IP rating
- This Neon Flex strip radiates upwards and can be bent horizontally.
- Our Neon Flex strips emit a homogeneous, uniform and coloured light so that individual LEDs cannot be seen.
- Thanks to their PVC cover and milky silicone, they are waterproof - thanks also to the IP65 protection class - and resistant to harsh weather conditions.
Additional information
- Please note that the connections, wiring and external controls must be isolated from water and moisture.
- The IP65 protection class is only achieved when properly connected and sealed.
*Important
This light source is only suitable for image recording processes according to high CRI. Due to COMMISSION REGULATION (EU) 2019/2015 of 11 March 2019 Article 1 (3) Annex IV point 3 (b) the assignment to an energy efficiency class is not applicable and registration in EPREL is not required.
